Blackmagic Design ATEM Mini Extreme ISO 8 Channel Streaming Switcher

SKU#: KATEMXTRISO
PrintPrint
Be the first to review this product

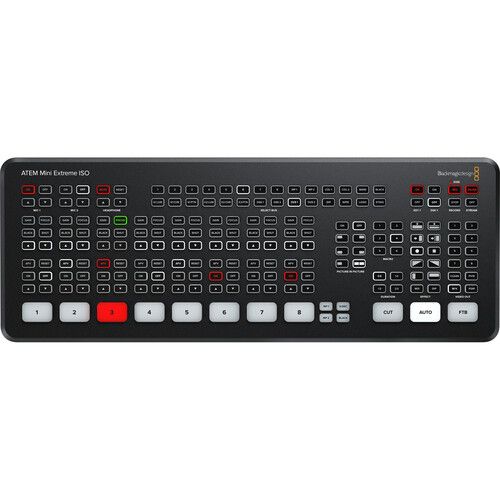

main product photo
Click to see full view
Our Price:
$1,425.00
Low Price Gurantee
Low PriceGurantee
Fast Delivery
FastDelivery
Secure Payments
SecurePayments
Expert Advice
ExpertAdvice
$1,425.00
In stock
Availability: Available For Order
Add to WishlistAdd to Wishlist
Add to CompareAdd to Compare
Low Price Gurantee

Ask an Expert

Our Trained Sales Staff are Available and Ready to Help!

(800) 480-1011EmailEmail
More Information
Reviews
FAQs
More Information
Features

  • 11 input

  • 2-Channel Audio Mixer

  • 4 Upstream, 2 Downstream Keyers

  • HD Multiview Output

  • Supports up to 1080p60

Dimensions

Dimension (HxWxD):  1.56"x14.56"x5.37"

Weight:  2.72 lbs

Technical Specifications
Processing
Processing Resolution 1080
Switching Type
Pushbutton, Software

Mix Effects
Audio Mixing 2-Channel Mixing
Available M/E Layers
9 M/E
Downstream Keys
2x Chroma, Luma, DVE
Effect Types 2x DVE
4x Luma Key
4x Chroma Key
Generators 5x Pattern
2x Color
Graphics Memory
20 Images

Input
Number of Video Input Sources 8
Video Inputs
8x HDMI
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input)

Output
Video Output Channels 2
Video Outputs
2x HDMI
Output Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs
1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output
HDMI: 2-Channel
Multiview Output 16-Way Multiview via HDMI

Connectivity
Other I/O 1x RJ45
2x USB-C
HDCP Support No

IP Encoding/Decoding
IP Video H.264:
1920 x 1080 Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams

Internal Recording
Recording Modes 1920 x 1080p up to 60 fps (MP4)

Hardware
OS Compatibility Computer: macOS 10.15 or Later / Windows 10 or Later
Mobile: Android/iOS
Processor
Not Specified by Manufacturer
Wireless No

Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption Device: 36 W
MPNBMD-SWATEMMINICEXTISO
