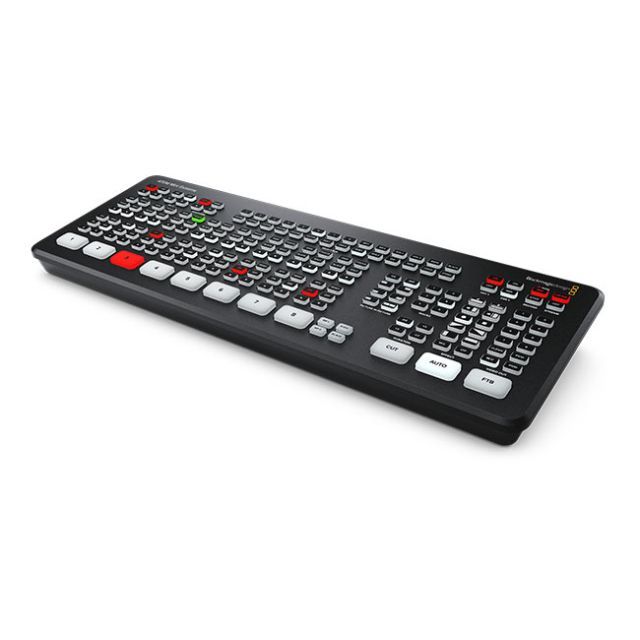

Benefits: Standing out as a top-tier live streaming switcher, the ATEM Mini Extreme provides enhanced video and audio mixing capabilities, direct streaming features and the convenience of recording to external drives, ensuring a polished and impeccable broadcasting experience.
Attractive Design: The Blackmagic Design ATEM Mini Pro HDMI live stream switcher showcases a sleek and contemporary aesthetic. This streaming switcher is not only functional but also an attractive addition to any broadcasting setup.
Durability: Crafted with top-notch materials and expert engineering, the ATEM Mini Extreme promises enduring durability and steadfast performance, even under rigorous conditions.
Applications: This live streaming switcher is the quintessential tool for a myriad of broadcasting requirements, whether it's live-streaming significant events, managing online seminars, or orchestrating remote conferences. Its adaptability is suitable for a wide array of settings.
Package Detail: With every purchase, you receive the Blackmagic Design ATEM Mini Extreme unit, accompanied by an external 12V power supply equipped with international socket adapters and a comprehensive user manual, ensuring you're set up and ready in no time.
This new 8 channel switcher streams direct via USB!
Benefits: Standing out as a top-tier live streaming switcher, the ATEM Mini Extreme provides enhanced video and audio mixing capabilities, direct streaming features and the convenience of recording to external drives, ensuring a polished and impeccable broadcasting experience.
Attractive Design: The Blackmagic Design ATEM Mini Pro HDMI live stream switcher showcases a sleek and contemporary aesthetic. This streaming switcher is not only functional but also an attractive addition to any broadcasting setup.
Durability: Crafted with top-notch materials and expert engineering, the ATEM Mini Extreme promises enduring durability and steadfast performance, even under rigorous conditions.
Applications: This live streaming switcher is the quintessential tool for a myriad of broadcasting requirements, whether it's live-streaming significant events, managing online seminars, or orchestrating remote conferences. Its adaptability is suitable for a wide array of settings.
Package Detail: With every purchase, you receive the Blackmagic Design ATEM Mini Extreme unit, accompanied by an external 12V power supply equipped with international socket adapters and a comprehensive user manual, ensuring you're set up and ready in no time.
This new 8 channel switcher streams direct via USB!
There's never been a switcher that’s easier to use, as you simply press any of the input buttons labelled 1 to 4 on the front panel to cut between video sources. You can choose between cut or effects transitions by selecting the cut or auto buttons. Unlike cut, the auto button tells ATEM Mini to use a video effect when switching inputs. You can select from exciting transitions such as dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. The DVE is perfect for picture in picture effects and you can instantly set up different picture positions. There is even a still store for titles and graphics accessible via external software control.
With 4 independent HDMI inputs, you can connect up to 4 high quality video cameras. Video cameras with HDMI outputs are dramatically better quality than simple webcams as they use higher quality lenses and have better low light sensitivity. All video sources will re‑sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work! Cameras with HDMI often support interchangeable lenses so you can change to wide angle lenses for wide shots and zoom lenses for close‑ups. Imagine taking advantage of the low light capability of better cameras for theater production, weddings, school concerts and music videos!
To ensure maximum compatibility, ATEM Mini features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as Open Broadcaster for live streaming, or Skype for Powerpoint presentations. ATEM Mini works with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Zoom, Twitch, Periscope, Livestream, Wirecast and much more!
The ATEM Mini Pro model has a built in hardware streaming engine for live streaming via its built in Ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just select the streaming service and enter the streaming key! There are palettes in ATEM Software Control for streaming setup and status, plus streaming status is also displayed in the multiview.
The ATEM Mini Pro model also supports direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube and Vimeo. ATEM Mini Pro supports multiple disks when used with a USB hub or Blackmagic MultiDock, so when a disk fills recording can continue to a second disk for non-stop recording. Record settings and disk selection are set up in ATEM Software Control and there's a record status view in the built in multiview. You can even trigger recording on external Blackmagic Pocket Cinema Cameras!
One of the benefits of ATEM Mini is the professional production values that are possible using the range of built in video effects! The cut button ensures an instant cut when switching between sources. The auto button is a professional term that's used on large broadcast switchers to enable video effects transitions. There are duration buttons for video effects allowing 0.5, 1, 1.5 and 2 second settings. You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip which fades via a color during the transition. Or use fun DVE effects that move the image off screen when transitioning between sources!
With two independent 3.5mm stereo audio inputs, you can connect desktop and lapel microphones. You can even connect a music player to generate introduction music after the live stream commences but before the program starts. With 2 extra stereo audio inputs, you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to ATEM Mini include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. ATEM Mini features a full Fairlight audio mixer and all HDMI audio inputs and both microphone inputs are all connected separately to the audio mixer so you can live mix from all audio sources.
The ATEM Software Control app unlocks the hidden power of ATEM Mini and allows access to every feature in the switcher. ATEM Software Control features a visual switcher user interface with parameter palettes for making quick adjustments. Although you can normally connect via USB, if you connect using Ethernet it's possible for multiple users to connect to ATEM Mini using separate copies of ATEM Software Control on different computers! The software lets you access full audio mixing with effects, load still frames and even do advanced macro programming! You can even save the switcher state as an XML file! If you need clip playback, you can even control HyperDeck disk recorders via Ethernet.
With a built in Fairlight audio mixer, ATEM Mini makes it possible to do complex live sound mixing. The internal mixer features a total of 12 channels so you can mix audio from all sources! That’s audio from all HDMI sources and the 2 stereo mic inputs. Each input channel features the highest quality 6 band parametric EQ and compressor, limiter, expander and noise gate as well as full panning. You can even set up the software to auto mix between inputs as you switch "AFV" or to live mix multiple sources together all at once. All this audio power can be controlled via ATEM Software Control, or you can add a Mackie compatible panel or even a massive Fairlight Audio Console!
ATEM Software Control connects to ATEM Mini via USB or Ethernet, however the benefit of Ethernet is you can use it to share your computer's internet connection for streaming on the ATEM Mini Pro model! Simply connect ATEM Mini Pro via Ethernet and set your computer to share its internet. Using Ethernet is easy, and when launching the software, just select the ATEM Mini model. If you are streaming on ATEM Mini Pro, also set your computer to share its internet. Now you get both control and streaming via the single Ethernet cable. This provides amazing mobility as you can connect your computer to the internet using wireless connections such as WiFi or even 4G and 5G tethered phones!
| Audio Mixing | 2-Channel Mixing |
| Number of Video Input Sources | 4 |
| Video Input Connectors | 4 x HDMI Female |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
| Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Connectors | 1 x HDMI |
| Output Video Format | HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Multiview Output | Yes |
| Monitor Output | 1 x HDMI |
| Other I/O | 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output 1 x USB Type-C Firmware, Control Input/Output |
| OS Compatibility | macOS 10.14 or Later Windows 10 |
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | 36 W |
| Dimensions | 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm |
| Weight | 19.4 oz / 550 g |
| Package Weight | 2.32 lb |
| Box Dimensions (LxWxH) | 11 x 5.5 x 4.4" |
| MPN | SWATEMMINICEXT |
|---|---|
| Availability | IN STOCK |
| Dimensions | N/A |
| Technical Specifications | N/A |
