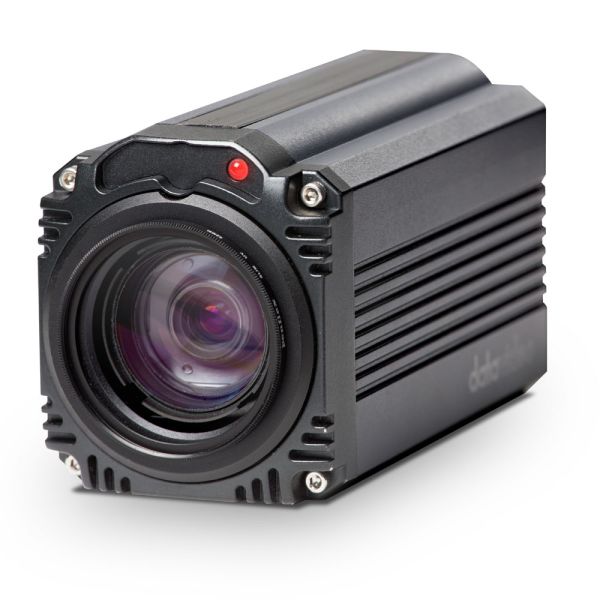

Datavideo BC-50 1080p HD Block Camera with 3G-SDI & Ethernet
The BC-50 is a cost-effective Full HD block camera which equips high quality super telephoto lens with 20X optical zoom and 16X digital zoom.
The BC-50 is a cost-effective Full HD block camera which equips high quality super telephoto lens with 20X optical zoom and 16X digital zoom.
The BC-50 is a cost-effective Full HD block camera which equips high quality super telephoto lens with 20X optical zoom and 16X digital zoom. The BC-50 Block Camera is a small HD camera that can deliver compressed video signals such as H.264, H.265 and MJPEG. The BC-50 block camera is made with sturdy and durable metal case which is suitable for HD camera applications in different environments. Moreover, the BC-50 block camera supports 1/2.7 inch 2.07 million pixels high quality HD CMOS sensor which can achieve maximum 1920x1080 high quality image.
| Auto Gain Control | Auto / Manual (0 to 28 Steps), Maximum Gain Limit (6 to 28 Steps) |
|---|---|
| Box Dimensions | 12 X 6 X 6 |
| Package Weight | 3.0lbs. |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power | 12 VDC, 6 W |
| Material of Construction | Aluminum Housing, Steel Back Plate |
| Mount Type | 1/4"-20 Female on Bottom Long Shoe Mount Slot on Top |
| Firmware Upgrade | Ethernet |
| Filter | M52.0 x 0.75 Thread with UV Protection |
| Field of View | Horizontal: Approx. 63.7° (Wide) / 2.3° (Telephoto) |
| Focal Length | 4.3 to 129mm, f/1.6 to 4.7 |
| Focus Modes | Auto/Manual |
| Digital Noise Reduction | 2/D 3/D |
| Optical Zoom | 20x |
| Electronic Shutter | 1/30 to 1/10000 Seconds |
| Minimum Illumination | 0.05 Lux at f/1.8, AGC On |
| S/N Ratio | 55 dB |
| Remote Control Interface | RS-485 with 3280' / 1000 m Distance Supported |
| MPN | BC-50 |
| Availability | Available For Order |
| Technical Specifications | N/A |
